Product Profile

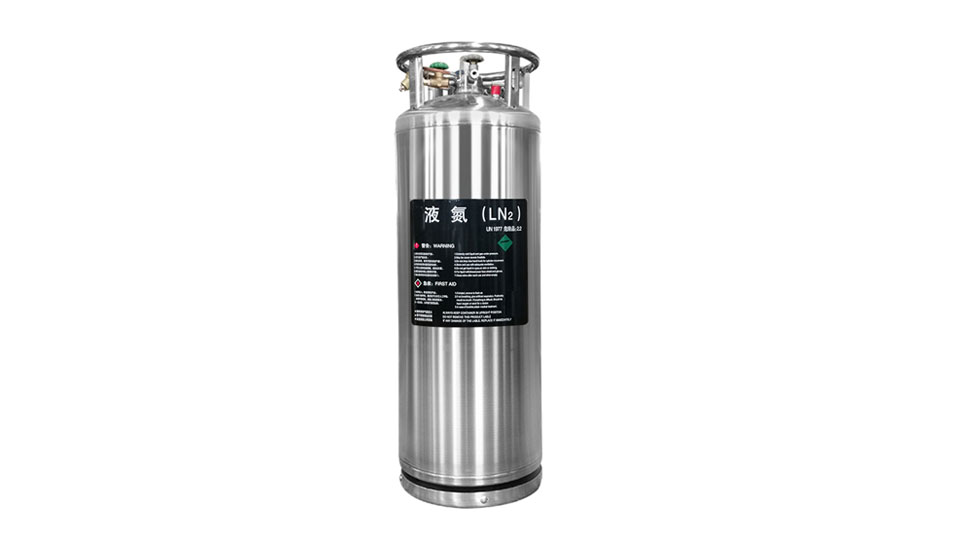

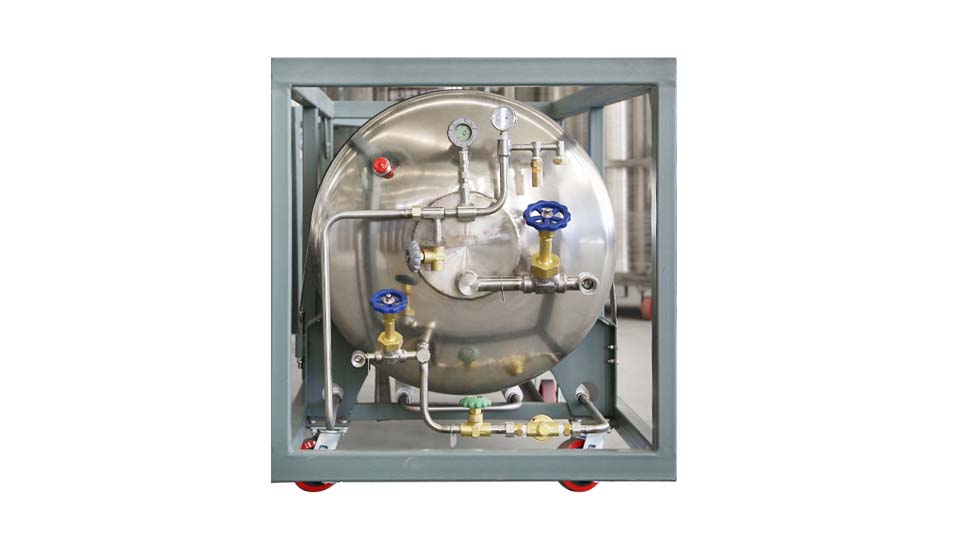

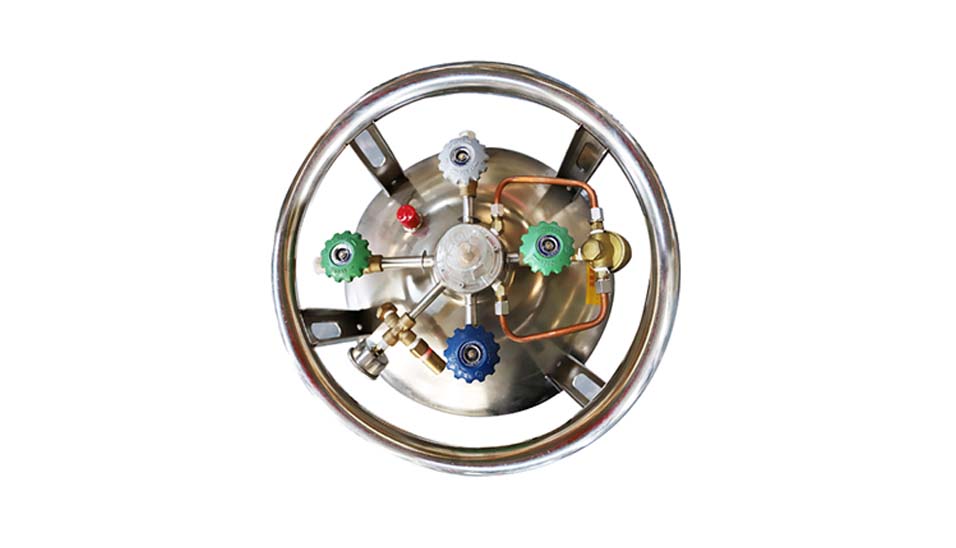

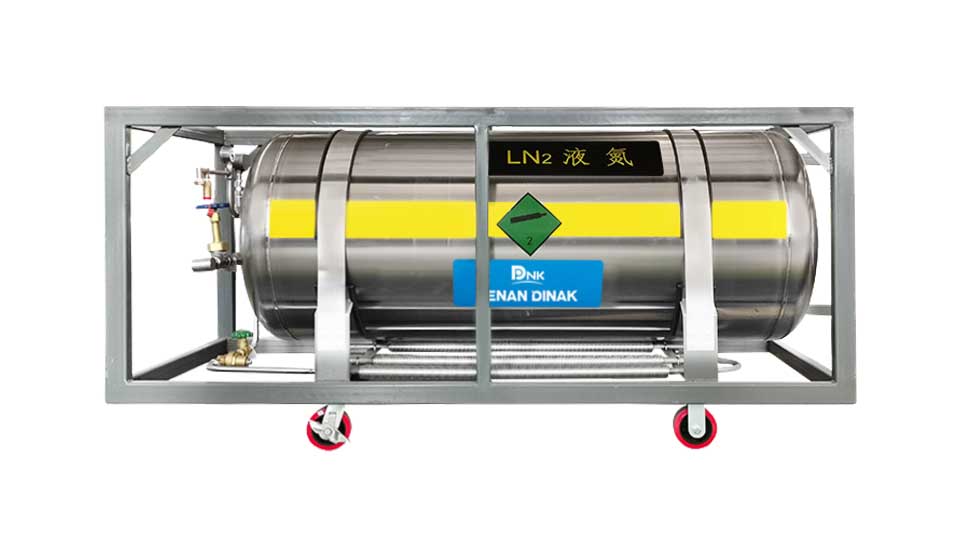

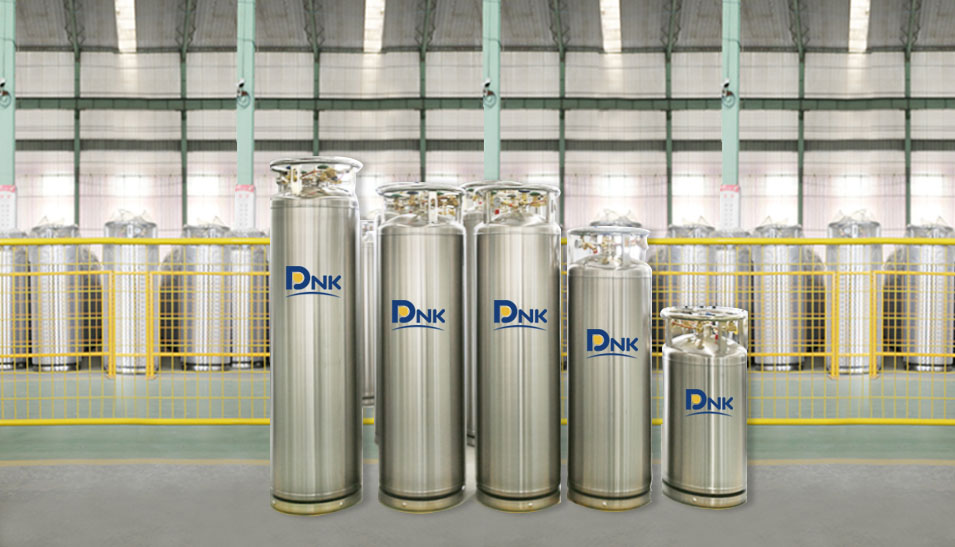

Welded Insulated Cylinders are high vacuum, multiple wraps & heated insulated stainless steel containers. They are designed to store and transport cryogenic LO2, LN2, LAr, LNG or LCO2.It can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications .

Industry Application

Chemicals & specialty products
Water treatment
Food & drinks
Pulp & Paper
Metal
Medical insurance
Oil & gas
Electronic product

Technical Parameters

Type	Usable Liquid Capacity(L)	Working Pressure(MPa)	Tare Weight(Kg)	The Filling Quality					Diameter*Height(mm)
				LNG	L02	LN2	LAr	LCO2
Vertical	80	1.37	76	30	87	61	106	84	ф 516*907
	100	1.37	86	38	108	77	133	105	ф 516*1037
	175	1.37	118	66	190	134	233	183	ф 516*1507
		2.3	133	/
		2.88	149	/
		3.45	171	/
	195	1.37	128	74	211	150	259	204	ф 516*1632
		2.3	143	/
		2.88	162	/
		3.45	185	/
	210	1.37	136	79	227	161	279	220	ф 516*1717
		2.3	151	/
		2.88	170	/
		3.45	191	/
	232	1.37	148	/	251	178	309	243	ф 516*1910
	232	3.45	199	/	251	178	309	243	ф 516*1910
	410	1.37	325	155	444	315	545	429	ф 920*1793
		2.3	369	/
		3.17	429	/
	500	1.37	360	189	542	384	665	523	ф 920*2080
		2.3	404	/
		3.17	477	/
